Busbar Controller with Display

Model: BBS350

Busbar Controller

The BBC969 receiver is a highly versatile device engineered to capture RF signals from a range of sensors, including Busbar Sensors, Humidity Sensors, and Bus Duct Temperature Sensors, within a 3-meter radius. Designed for seamless integration, it is installed within the control panel, where it facilitates reliable communication with connected sensors. This receiver provides critical real-time data on temperature and battery status, ensuring operators have the information needed to identify and address potential issues promptly. By enabling continuous monitoring, the BBC969 enhances system reliability, minimizes downtime, and supports optimal operational performance.

In addition to its core monitoring functions, the BBC969 receiver is equipped with two dedicated relays that focus on temperature and humidity control. These relays add a vital layer of safety by enabling automated responses or activating alarms when environmental or equipment thresholds are breached. With its robust design, efficient performance, and ability to maintain stable communication, the BBC969 is an indispensable tool for ensuring the safety, reliability, and efficiency of industrial systems.

Features

Supports 9, 18, & 27 BBS350 Sensors
Supports 3 Humidity Sensors
Communication protocol RS485 RTU
Internal RTC available
Inbuilt Buzzer
Two Relays are provided for Temperature/Humidity Thresholds

Specification

Property Details
Model BBC969 Bus Bar Controller
Type Spread Spectrum Tech. with 9-27 sensor’s communication
Frequency 2.4 GHz IEEE802.15.4
Alarm Mode Buzzer, Relay for Hooter and Relay for Circuit Breaker
Data log Max temperature in day
Max Reception Range 3 meters
Mounting Location Panel Mount
Operating Temperature -28°C to 85°C
Physical Dimensions 96mmx96mmx72mm
Weight 500 grams

Download brochure to explore our services and offerings.

Specification

Property Details
Model BBS350
Type Sensor & RF Transmitter
Enclosure Non-conductive Silicon strap can withstand up to 300°C
Operating Temperature -40°C to 125°C
Transmission Frequency 30sec
Minimum Reception Range 3 meters 50-100 ft. (sensors installed in control panel or switch gears)
Battery 3V/850mA Industrial High Temperature Industrial Lithium battery that lasts up to 5 years.
Mounting Location On flat clean surface
Weight 30 grams
Dimensions 45mmx45mmx20mm*350mm
Installation Can be installed anywhere on stationary or rotatory object by just strapping, so low breakdown installation time

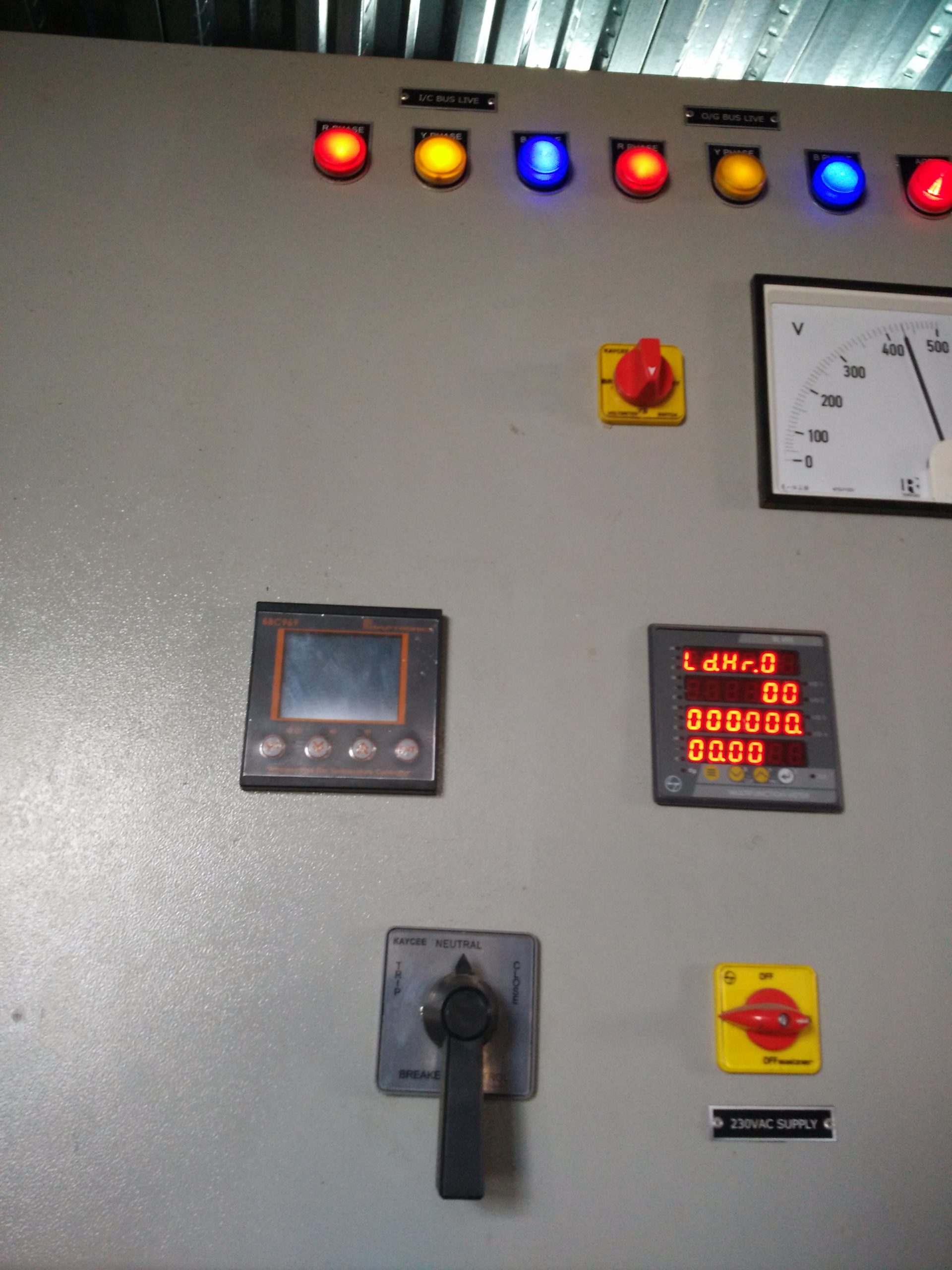

Installation Images

Industries Served

Pharma
Oil & Gas
Steel Industry
Cement
Tyre & Rubber
Sugar Industry
Cogen Power Industry
Power Distribution
