Self-Powered Busbar Temperature Sensor

Model: BBC969-485

Self Powered Busbar Temperature sensor

The self-powered temperature sensor is a cost-effective solution for monitoring critical temperature points on both metal and insulating surfaces of electrical components. This sensor harvests energy from the magnetic field generated around the busbar, eliminating the need for external power sources. It operates efficiently within a temperature range of up to 150°C, providing precise temperature readings with dependable data transmission.

Get a Quote

Features

Wireless Sensor
Temperature measures upto 150°
Range 10 meters
Data interval 30Sec
No Battery Required, Powered through energy harvesting
Used for LT/HT/MT (0-60KV)

Specification

Property Details
Model BBS350CT
Type Sensor & RF Transmitter
Enclosure Non-conductive Silicon strap can withstand up to 300°C
Operating Temperature Up to 150°C
Accuracy +-1°C
Transmission Frequency 30sec
Minimum Reception Range 10 meters (50-100 ft. sensors installed in control panel or switch gears)
Battery Not Required
Power Energy harvesting
Current Flow Required 8-1000A
Mounting Location On flat clean surface
Weight 30 grams

Download brochure to explore our services and offerings.

Brochure

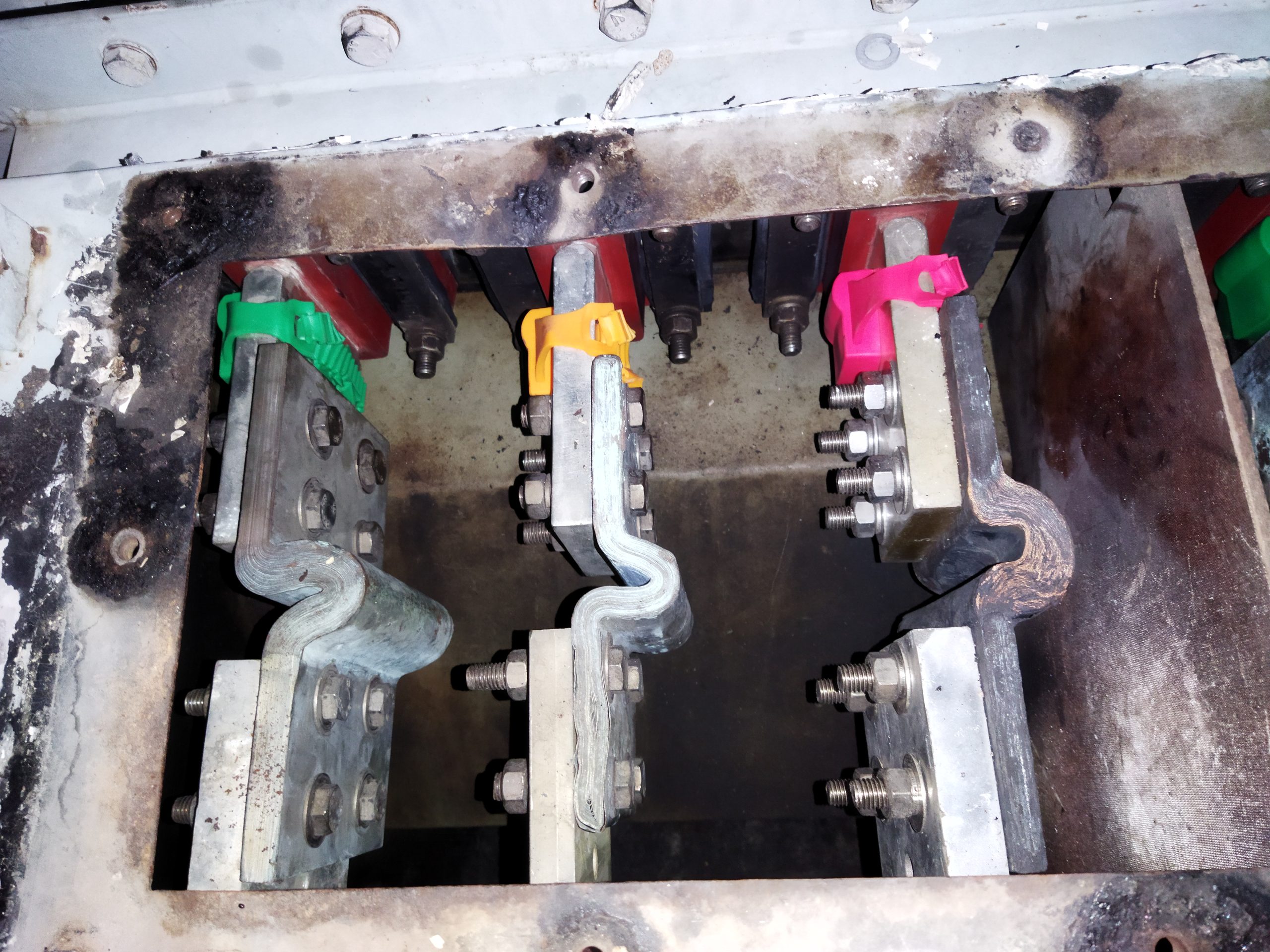

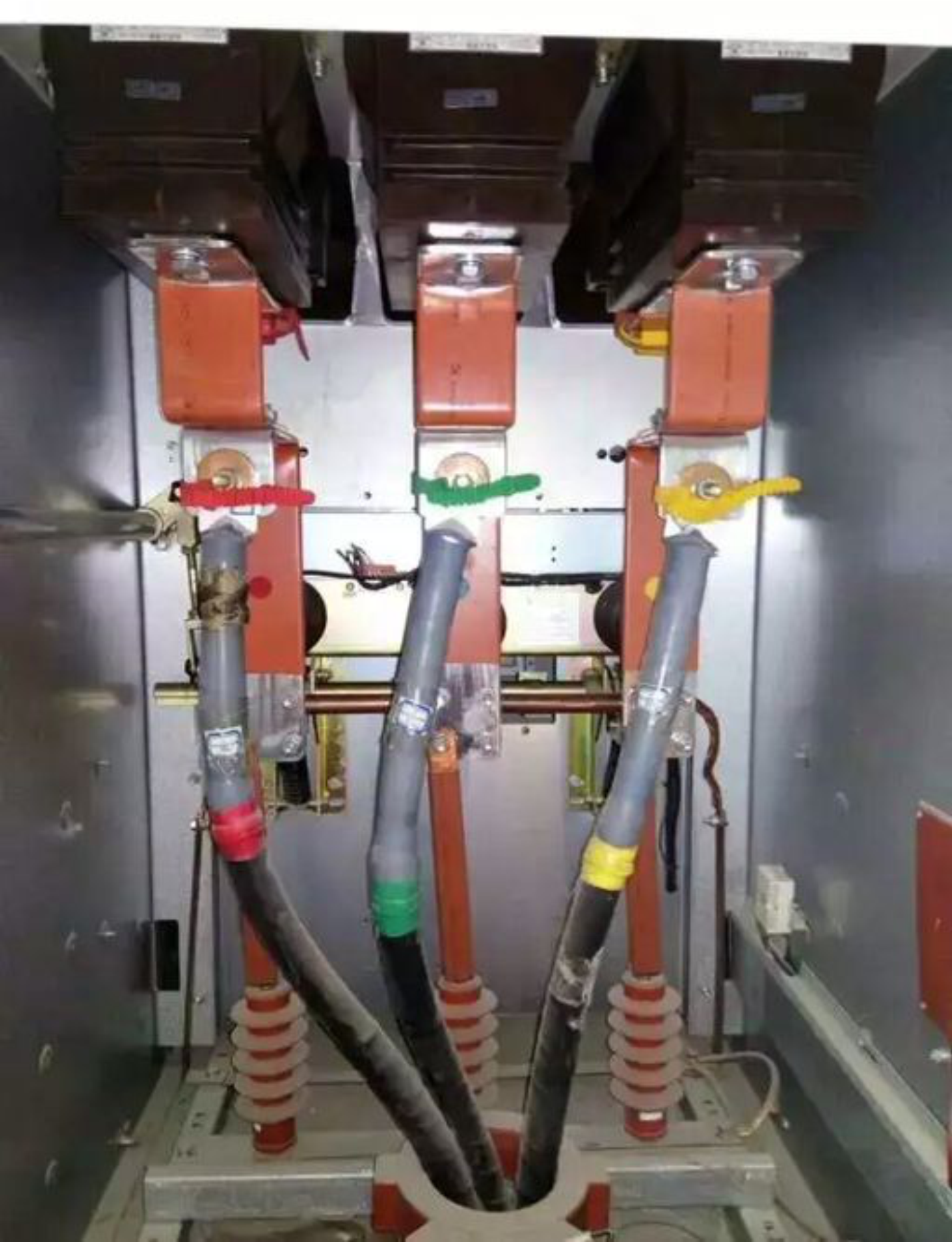

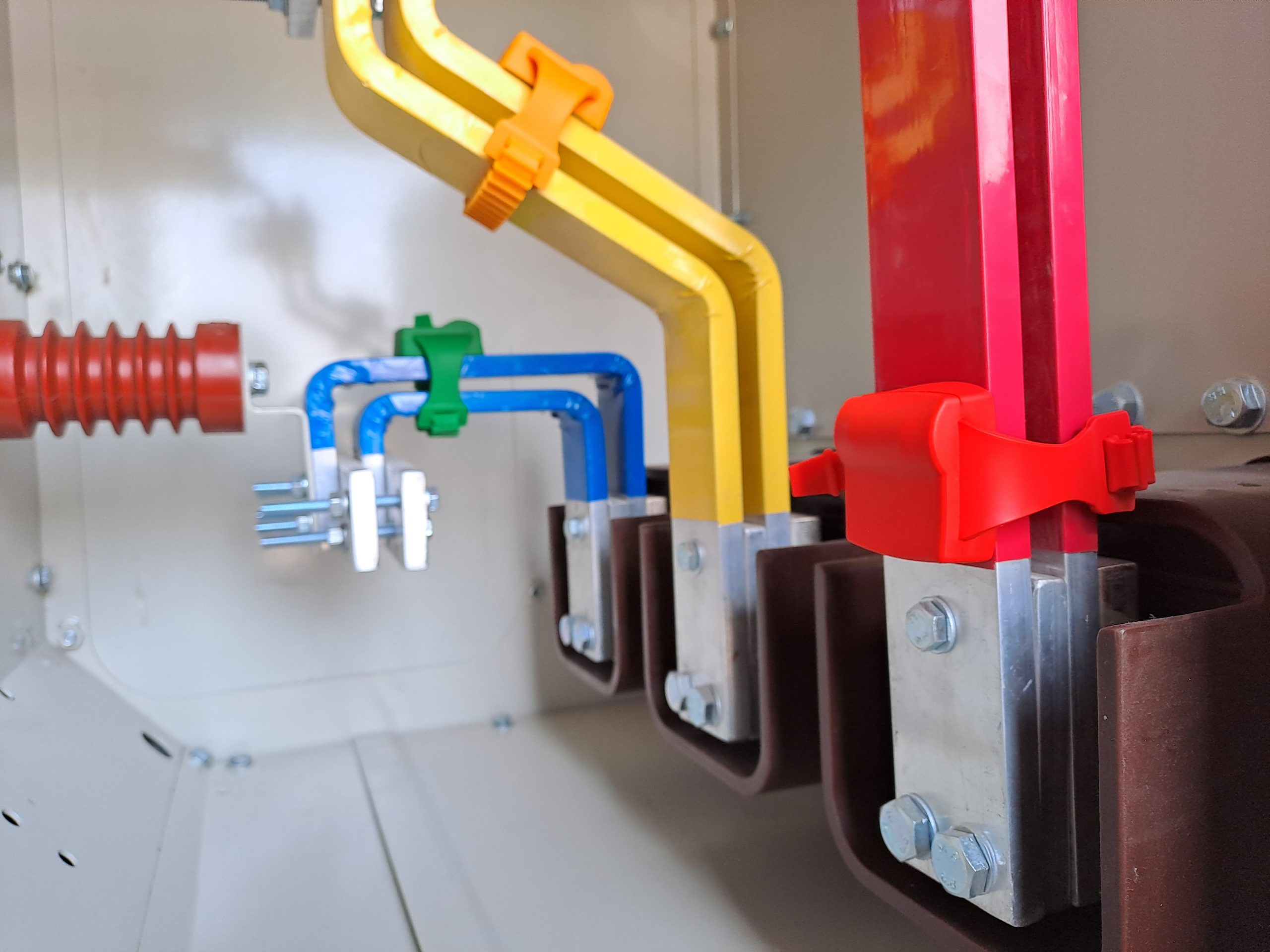

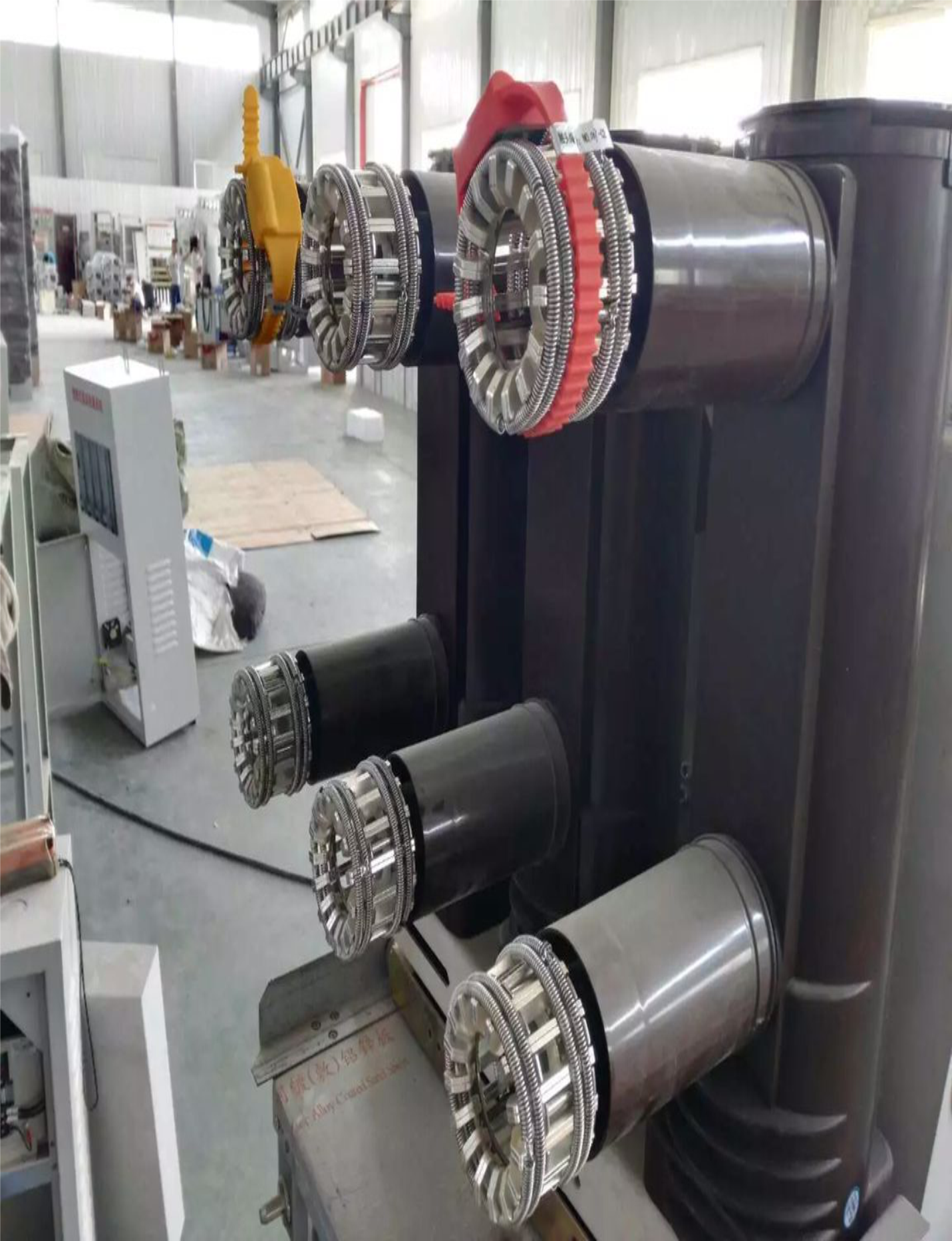

Installation Images

Industries Served

Pharma
Oil & Gas
Steel Industry
Cement
Tyre & Rubber
Sugar Industry
Cogen Power Industry
Power Distribution
